LPC-06-1550-9/125-S-0.45-2.13GR-45-X-0.25-1

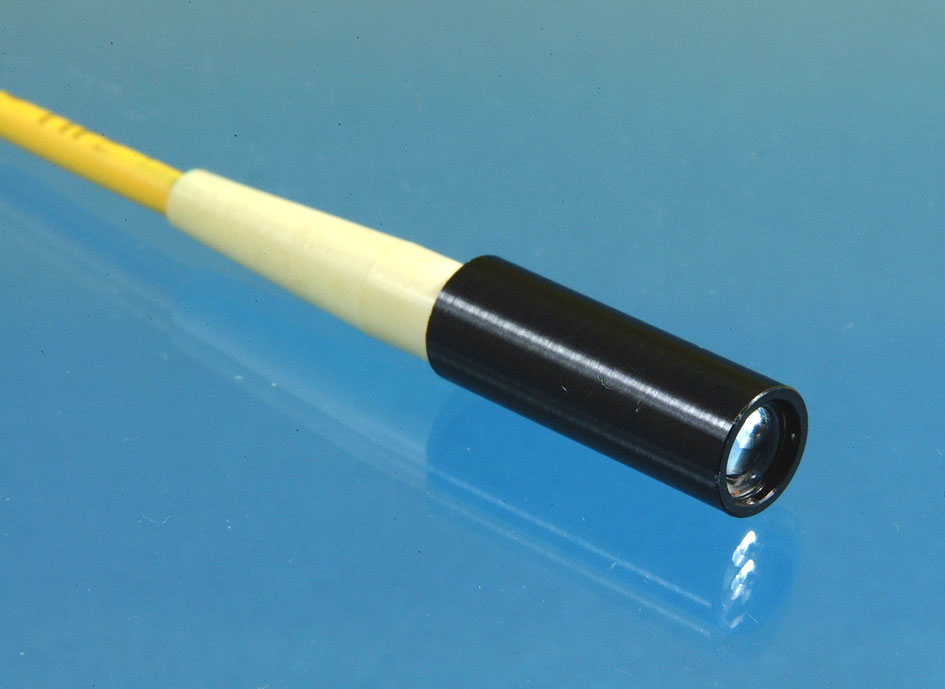

Pigtail style collimator for 1300-1550nm with a 1 meter long, 250 micron OD unjacketed, 9/125 SM fiber, a 2.5mm OD housing with an f=2.13mm GRIN lens with -45dB return loss and no connector. The output beam diameter will be 0.47mm.
Barcode: 2619
OZ Part Number: LPC-06-1550-9/125-S-0.45-2.13GR-45-X-0.25-1
Availability: 3 in stock
3 in stock
out of stock
out of stock
Compliance:
US$55.78
on sale
