LPC-03-1550-8/125-P-0.4-2AS-40-X-1-0.5-SP

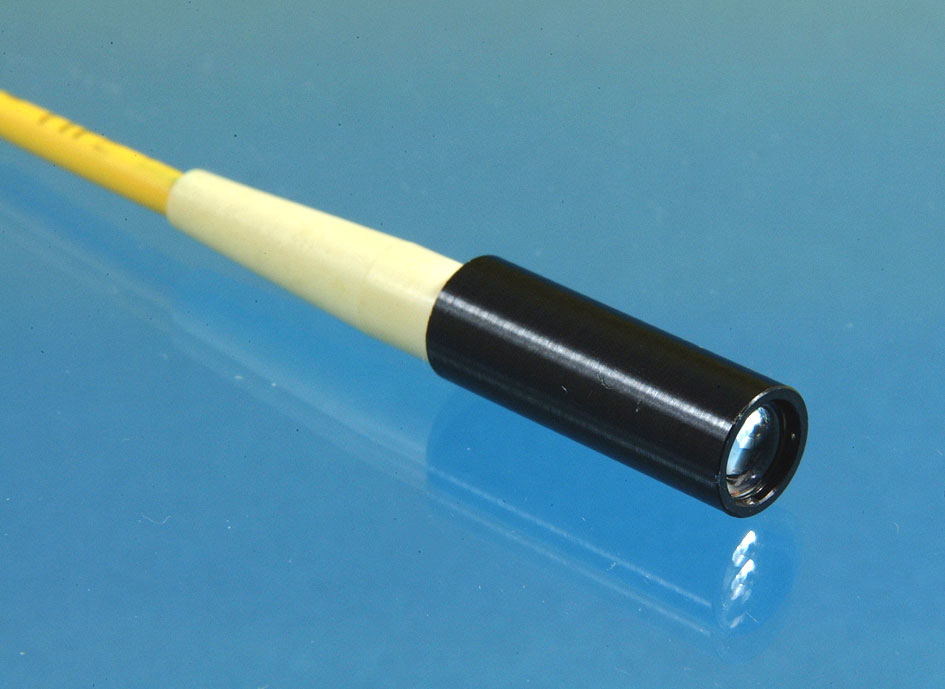

Pigtail style collimator for 1550nm with an f=2mm aspheric lens in a 4mm OD housing with -40dB return loss, with a 0.5 meter long, 900 micron OD jacketed, 8/125 PM fiber, with no connector. The output beam diameter will be 0.44mm. The collimator is mounted in a (SP) 15mm diameter non-removable flange, with a 0.43" diameter hole pattern for mounting and aligning. O-ring, mounting screws and a ball driver are also included.
Barcode: 3300
OZ Part Number: LPC-03-1550-8/125-P-0.4-2AS-40-X-1-0.5-SP
Availability: 2 in stock
2 in stock
out of stock
out of stock
Compliance:
US$93.10
on sale
